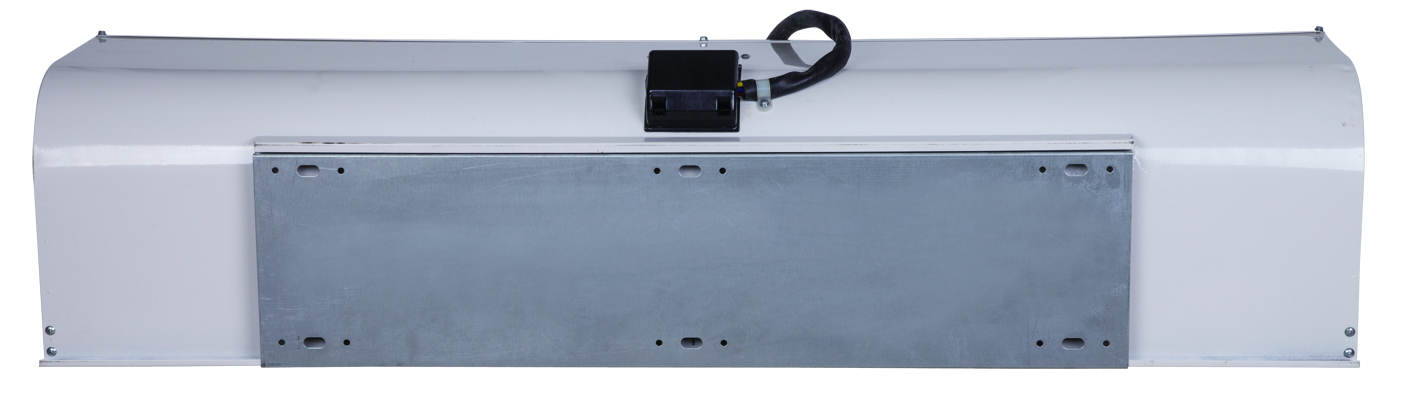

RM-DJX1

Type: PTC heating air curtain

Place of Origin: Guangzhou, P.R. China

Certification: CE, CB

Fan type: Cross flow

Airflow: 1600-3000 m3/h

Heating power: 15-29kw

Temperature rise: 45k

Packaging Details: Carton box with foam and PE bag

OEM/ODM: Available

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Cross flow model with PTC heating elements

Aesthetically pleasing and slim design suitable for most commercial application

Unique "X" series structure lead to better uniformity, therefore better effective length and distance

Powder coded steel case with plastic blowers. Remote control and Thermostats are included

PTC heating elements ensure better efficiency than other traditional electric heated units

Double safety protection, PTC heating elements installed at the air-inlet ensure better performance


DJ X1 Electric Heating Series

Model

Voltage(v)/
Frequency
 (Hz)

Motor Input Power
(W)

Heating Power
（KW)

Temp. Rise
（K)

Air Velocity
 (M/S)

Air Volume (M3/H)

Net Weight
(KG)

Gross Weight (KG)

Unit Size
(MM)

Carton Size
 (MM)

RM-4009-3DJ15/Y-X1

380(50)

215

15

45

12

1600

21.5

23.5

900×246×265

1000X360X325

RM-4012-3DJ22/Y-X1

310

22

2300

28

30

1210×246×265

1300X360X325

RM-4015-3DJ29/Y-X1

400

29

3000

35

37.5

1505×246×265

1600X360X325
