FM-V6

Type: Ambient Air Curtain

Place of Origin: Guangzhou, P.R. China

Certification: CE, CB

Fan type: Centrifugal

Airflow: 900-2850 m3/h

Packaging Details: Carton box with foam and PE bag

OEM/ODM: Available

Quantity:
Availability:





Inquire Add to Basket

Product Description

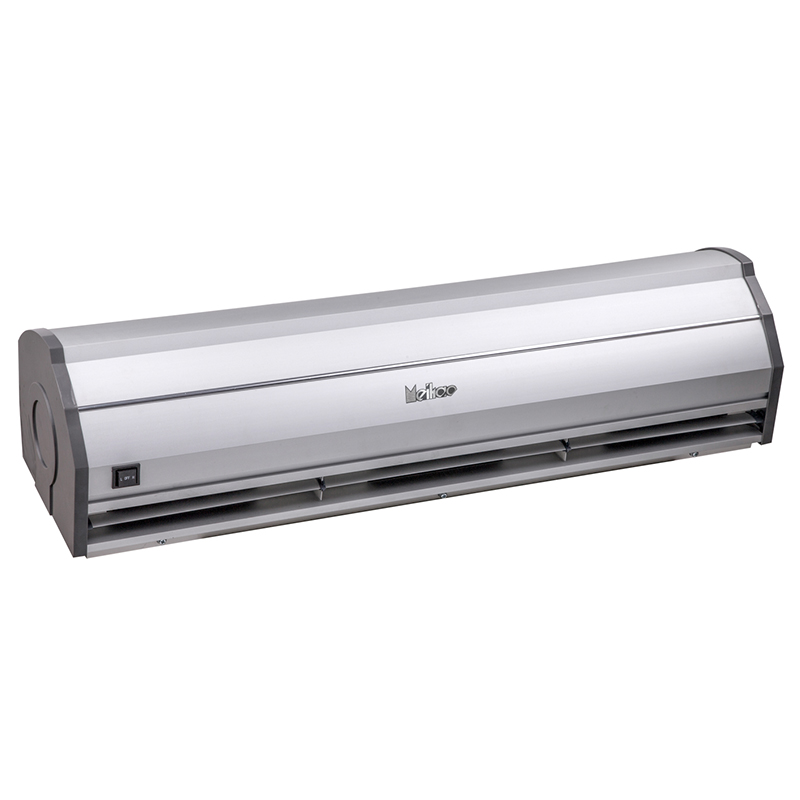

Ambient Centrifugal model

Centrifugal structure ensure high air velocity

Aesthetically pleasing 3D design suitable for most commercial application

Aluminum case with plastic blowers

Remote control and door switch are optional

Aeolus V6 Series
Model	Voltage(V)/ Frequency (Hz)	Motor Input Power (W)		Max Air Velocity (M/S)		Noise (dB)		Air Volume (M3/H)		Net Weight (KG)	Gross Weight (KG)	Unit Size (MM)	Carton Size (MM)
		Motor Input Power (W)		Max Air Velocity (M/S)		Noise (dB)		Air Volume (M3/H)
		Hi	Low	Hi	Low	Hi	Low	Hi	Low
FM-3509L-V6	220-240/50	220	180	16	13	52	49	1100	900	15.5	16.5	900×235X219	950×280X275
FM-3510L-V6		250	200			52	49	1100	900	16	16.9	1000×235X219	1050×280X275
FM-3512L-V6		270	220			53	50	1500	1200	18.5	19.9	1200×235X219	1250×280X275
FM-3515L-V6		350	280			55	52	1900	1500	24	25.3	1500×235X219	1540×280X275
FM-3518L-V6		400	320			57	55	2280	1800	27.4	28.6	1800×235X219	1840×280X275
FM-4009L-V6	220-240/50	370	300	20	16	57	54	1400	1000	15.7	16.7	900×235X219	950×280X275
FM-4010L-V6		400	320			57	54	1400	1000	16.5	17.4	1000×235X219	1050×280X275
FM-4012L-V6		460	370			58	55	1900	1500	18.9	20.3	1200×235X219	1250×280X275
FM-4015L-V6		600	480			61	58	2300	1900	24.5	25.8	1500×235X219	1540×280X275
FM-4018L-V6		700	560			63	61	2850	2250	28	29.2	1800×235X219	1840×280X275
