Type:Ambient Air Curtain
Place of Origin:Guangzhou, P.R. China
Certification:CE, CB
Fan type:Cross flow
Airflow:800-3900 m3/h
Packaging Details:Carton box with foam and PE bag
OEM/ODM:Available
| Quantity: | |
|---|---|
Ambient Cross-flow model
Unique "X" series structure lead to better uniformity, therefore better effective length and distance
Aesthetically pleasing and slim design suitable for most commercial application
Stainless steel air inlet grille, powder-coded steel case with plastic blowers
Remote control, door switch and aluminum blowers are optional
X1 Supreme Series (DC motor version available) | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FM-3506-X1 | 220-240/50 | 110 | 75 | 11.5 | 9.5 | 53 | 50 | 1000 | 800 | 8 | 9 | 600×189×215 | 650X228X270 |
FM-3509-X1 | 180 | 130 | 54 | 52 | 1700 | 1350 | 10 | 11.5 | 900×189×215 | 950X228X270 | |||
FM-3512-X1 | 260 | 180 | 57 | 55 | 2300 | 1800 | 12 | 13.5 | 1210×189×215 | 1260X228X270 | |||
FM-3515-X1 | 340 | 250 | 58 | 56 | 2900 | 2200 | 14 | 15.6 | 1505×189×215 | 1550X228X270 | |||
FM-3518-X1 | 420 | 330 | 59 | 57 | 3500 | 2600 | 18 | 19.7 | 1825×189×215 | 1875X228X270 | |||
FM-3520-X1 | 500 | 410 | 60 | 58 | 4100 | 3000 | 19.5 | 22.5 | 2000×189×215 | 2050X228X270 | |||

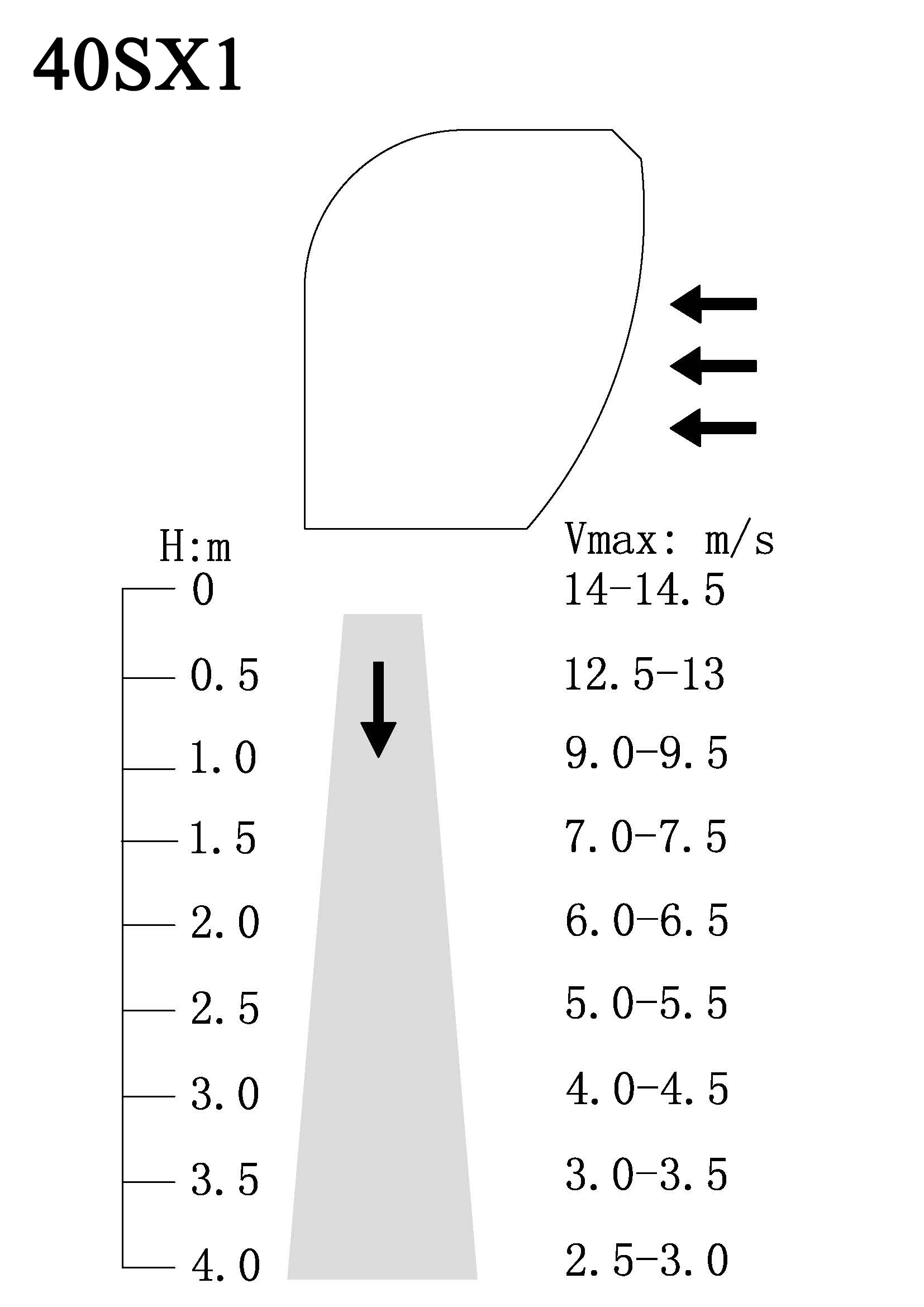

FM-4009-X1 | 220-240/50 | 250 | 180 | 14.5 | 11.5 | 70 | 68 | 2100 | 1650 | 14 | 15.5 | 900×246×265 | 950X265X325 |
FM-4012-X1 | 360 | 260 | 73 | 71 | 3000 | 2400 | 18 | 19.5 | 1210×246×265 | 1260X265X325 | |||
FM-4015-X1 | 470 | 340 | 75 | 73 | 3900 | 3100 | 22 | 24 | 1505×246×265 | 1550X265X325 | |||
