Type:Ambient Air Curtain
Place of Origin:Guangzhou, P.R. China
Certification:CE, CB
Fan type:Cross flow
Airflow:800-4100 m3h
Packaging Details:Carton box with foam and PE bag
OEM/ODM:Available
| Quantity: | |
|---|---|

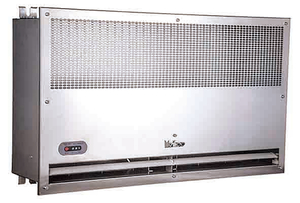

Ambient Cross-flow model
Unique "X" series structure lead to better uniformity, therefore better effective length and distance
Aesthetically pleasing and slim design suitable for most commercial application
Powder-coded steel case with plastic blowers
Remote control, door switch and aluminum blowers are optional
X1 Series DC motor version | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FM-3506-X1 | 220-240/50 | 110 | 75 | 11.5 | 9.5 | 53 | 50 | 1000 | 800 | 8 | 9 | 600×189×215 | 650X228X270 |
FM-3509-X1 | 180 | 130 | 54 | 52 | 1700 | 1350 | 10 | 11.5 | 900×189×215 | 950X228X270 | |||
FM-3512-X1 | 260 | 180 | 57 | 55 | 2300 | 1800 | 12 | 13.5 | 1210×189×215 | 1260X228X270 | |||
FM-3515-X1 | 340 | 250 | 58 | 56 | 2900 | 2200 | 14 | 15.6 | 1505×189×215 | 1550X228X270 | |||
FM-3518-X1 | 420 | 330 | 59 | 57 | 3500 | 2600 | 18 | 19.7 | 1825×189×215 | 1875X228X270 | |||
FM-3520-X1 | 500 | 410 | 60 | 58 | 4100 | 3000 | 19.5 | 22.5 | 2000×189×215 | 2050X228X270 | |||
FM-4009-X1 | 220-240/50 | 250 | 180 | 14.5 | 11.5 | 70 | 68 | 2100 | 1650 | 14 | 15.5 | 900×246×265 | 950X285X325 |
FM-4012-X1 | 360 | 260 | 73 | 71 | 3000 | 2400 | 18 | 19.5 | 1210×246×265 | 1260X285X325 | |||
FM-4015-X1 | 470 | 340 | 75 | 73 | 3900 | 3100 | 22 | 24 | 1505×246×265 | 1550X285X325 | |||
