Type:Ambient Air Curtain
Place of Origin:Guangzhou, P.R. China
Certification:CE, CB
Fan type:Centrifugal
Airflow:2800-10200 m3/h
Packaging Details:Carton box with foam and PE bag
OEM/ODM:Available
| Quantity: | |
|---|---|

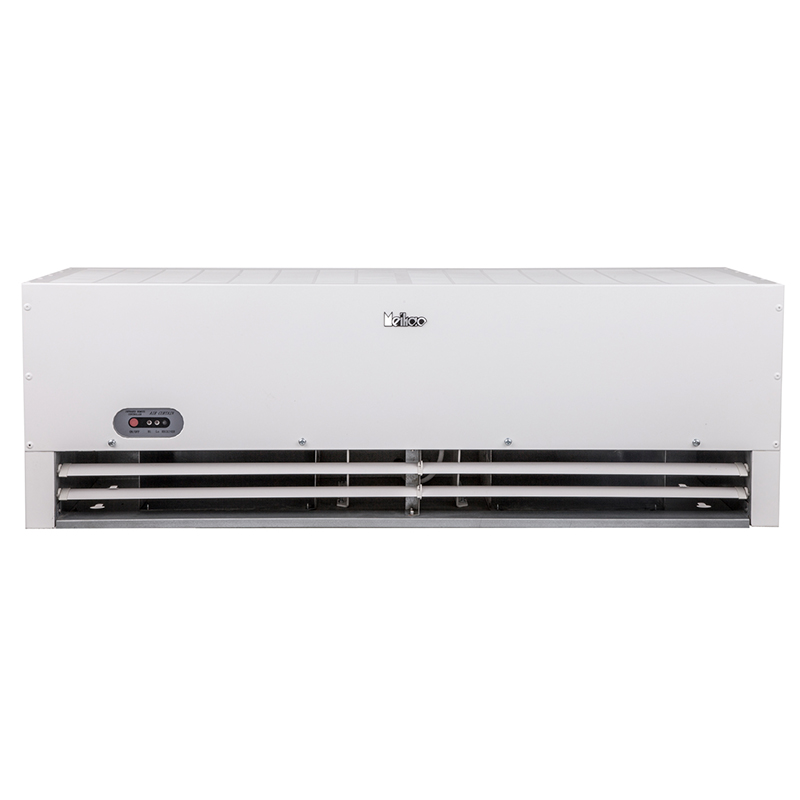

Ambient Centrifugal model
Centrifugal structure ensure high air velocity
Classic industrial design suitable for most Industrial application
Powder-coated steel case with galvanized steel blowers
Remote control and door switch are optional parts with additional cost
Meihao atmosphere curtain FM-50/60 series will be horizontal mounted cold surroundings curtain. Our standard designs are with cross movement fan, The air curtain is installed above the door. Application areas contain residential area, commercial place and industrial area, for instance garage door, warehouse home, shopping mall door, etc.
Classic Industrial Series | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FM-5010L-W | 220-240/50 | 480 | 370 | 17 | 13 | 54 | 52 | 3300 | 2800 | 33 | 34.5 | 992×355×320 | 1045X405X380 |
FM-5012L-W | 510 | 400 | 54 | 52 | 3600 | 3100 | 35 | 37 | 1192×355×320 | 1245X405X380 | |||
FM-5015L-W | 800 | 580 | 54 | 52 | 4900 | 4300 | 51.5 | 53.5 | 1492×355×320 | 1545X405X380 | |||
FM-5018L-W | 980 | 740 | 56 | 54 | 5200 | 4600 | 55 | 57.5 | 1792X355X320 | 1845X405X380 | |||
FM-5021L-W | 1100 | 800 | 56 | 54 | 6600 | 5600 | 64.5 | 67.5 | 2092X355X320 | 2145X405X380 | |||
FM-6009L-W | 220-240/50 | 1100 | 900 | 27 | 23 | 70 | 66 | 4600 | 3900 | 45 | 50 | 900×460×420 | 975X530X510 |
FM-6010L-W | 1200 | 950 | 72 | 68 | 5100 | 4300 | 50 | 55 | 1000×460X420 | 1075X530X510 | |||
FM-6012L-W | 1700 | 1350 | 74 | 70 | 6900 | 5800 | 65 | 70 | 1200×460×420 | 1275X530X510 | |||
FM-6015L-W | 1850 | 1500 | 76 | 72 | 7600 | 6400 | 70 | 75 | 1500×460X420 | 1575X530X510 | |||
FM-6018L-W | 2400 | 1900 | 78 | 74 | 9200 | 7800 | 85 | 93 | 1800×460×420 | 1875X530X510 | |||
FM-6020L-W | 3000 | 2400 | 80 | 76 | 10200 | 8600 | 100 | 109 | 2000×460×420 | 2075X530X510 | |||
