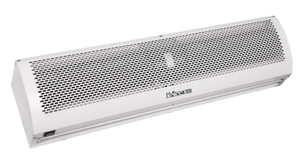

Ambient Cross-flow model
Unique "X" series structure lead to better uniformity, therefore better effective length and distance
Aesthetically pleasing and slim design suitable for most commercial application
Powder-coded steel case with plastic blowers
Remote control, door switch and aluminum blowers are optional
Meihao air curtain FM-W collection is wall mount or maybe horizontal mounted cold weather curtain. Our standard versions are with cross movement fan, the air curtain will likely be installed indoor above that door. The length with the product include 24 ", 36 inch, 42 inch, 48 inch, 60 inch, 72 inch, 80 ", for other size we can easily customize for you. For control system we've found several options, such as handy remote control and door switch. By way of example with door switch, if the door opens, the air curtains will automatic start working. It’s very good intended for areas using automatic home. Application areas include commercial area, commercial area and also industrial area, such as garage door, warehouse doorway, freezer truck,shopping mall door, etc.
W Series (New) | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FM-3009-W | 220-240/50 | 110 | 90 | 10.5 | 9 | 53 | 51 | 1250 | 1000 | 6.5 | 7.5 | 910×158×165 | 960X200X210 |
FM-3012-W | 155 | 130 | 55 | 53 | 1800 | 1450 | 8 | 9.5 | 1212X158×165 | 1260X200X210 | |||
FM-3015-W | 200 | 170 | 56 | 54 | 2350 | 1850 | 9.5 | 11 | 1515X158×165 | 1565X200X210 | |||
FM-3018-W | 245 | 205 | 57 | 55 | 2900 | 2300 | 11.5 | 13.5 | 1817X158×165 | 1870X200X210 | |||
FM-3020-W | 275 | 235 | 58 | 56 | 3150 | 2500 | 13 | 15 | 2000X158×165 | 2050X200X210 | |||
FM-3509-W | 220-240/50 | 180 | 130 | 12 | 10 | 54 | 52 | 1700 | 1350 | 11 | 12 | 915×195×180 | 965X245X245 |
FM-3512-W | 260 | 180 | 57 | 55 | 2300 | 1800 | 13 | 14 | 1210×195×180 | 1260X245X245 | |||
FM-3515-W | 340 | 250 | 58 | 56 | 2900 | 2200 | 15 | 16.5 | 1505×195×180 | 1550X245X245 | |||
FM-3518-W | 420 | 330 | 59 | 57 | 3500 | 2600 | 17.5 | 19.5 | 1825×195×180 | 1875X245X245 | |||
FM-3520-W | 500 | 410 | 60 | 58 | 4100 | 3000 | 19 | 21 | 2000×195×180 | 2050X245X245 | |||
