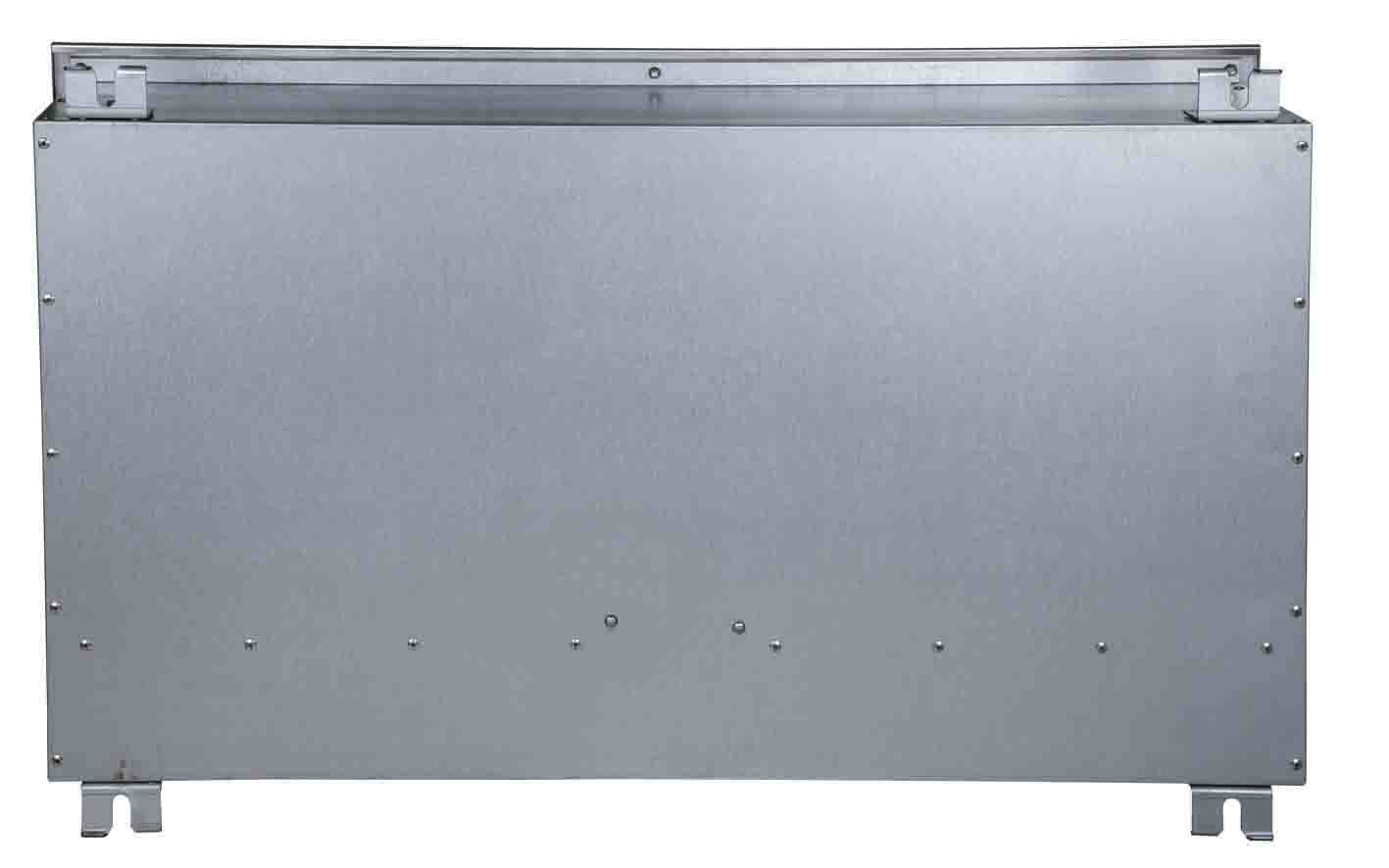

Ceiling/recessed mount Heating Air Curtain RM-T Series

Type:PTC heating air curtain

Place of Origin:Guangzhou, P.R. China

Certification:CE, CB

Fan type:Cross flow

Airflow:1250-2550 m3/h

Heating power:6-13kw

Temperature rise:22k

Packaging Details:Carton box with foam and PE bag

OEM/ODM:Available

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Cross flow model with PTC Heating elements

Ceiling embedded design suitable for most commercial application

Unique structure lead to better uniformity, therefore better effective blocking distance

Galvanized steel case with stainless steel cover and plastic blowers. Remote control and Thermostats are included

PTC heating elements ensure better efficiency than other traditional electric heated units

Double safety protection, PTC heating elements installed at the air-outlet

Powder coated steel air inlet are optional


T Electric Heating Series

Model

Voltage(v)/
  Frequency
   (Hz)

Motor Input Power
  (W)

Heating Power
  （KW)

Temp. Rise
  （K)

Air Velocity
   (M/S)

Air Volume (M3/H)

Net Weight
  (KG)

Gross Weight (KG)

Unit Size
  (MM)

Carton Size
   (MM)

RM-3509-3D06/Y-T

220/380(50)

155

6

22

8

1250

18

20

900X520X225

950X555X285

RM-3512-3D08/Y-T

200

8

1850

22

25

1200X520X225

1250X555X285

RM-3515-3D10/Y-T

235

10

2450

27

31

1500X520X225

1550X555X285

RM-3518-3D12/Y-T

320

12

3050

32

37

1800X520X225

1850X555X285

RM-4009-3D07/Y-T

220/380(50)

215

7

22

9

1400

23

26

900X600X265

950X635X325

RM-4012-3D10/Y-T

310

10

1950

29

33

1200X600X265

1250X635X325

RM-4015-3D13/Y-T

400

13

2550

35

40

1500X600X265

1550X635X325
