Type:Ambient Air Curtain
Place of Origin:Guangzhou, P.R. China
Certification:CE, CB
Fan type:Centrifugal
Airflow:2800-10200 m3/h
Packaging Details:Carton box with foam and PE bag
OEM/ODM:Available
| Quantity: | |
|---|---|
Ambient Centrifugal model
Centrifugal structure ensure high air velocity
Classic industrial design suitable for most Industrial applications
Powder-coated steel case with galvanized steel blowers
Remote control and door switch are optional

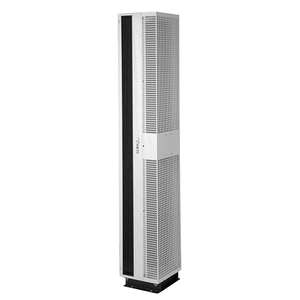

Meihao air curtain FMC-W series is vertical mounted cold air curtain. Our standard versions are with cross circulation fan, The air curtain install beside the door.The power of the air curtain is customizable from 100w to 2kw. Application areas incorporate residential area, commercial region and industrial area, for example garage door, warehouse doorway, shopping mall door, and so on.
CWL Vertical Series | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FMC-5010L-W | 220-240/50 | 480 | 370 | 17 | 13 | 54 | 52 | 3300 | 2800 | 35 | 36.5 | 1000×355×345 | 1060X405X405 |
FMC-5015L-W | 800 | 580 | 54 | 52 | 4900 | 4300 | 54 | 56 | 1500×355×345 | 1560X405X405 | |||
FMC-5020L-W | 1100 | 800 | 56 | 54 | 6600 | 5600 | 65 | 68 | 2000X355X345 | 2060X405X405 | |||
FMC-6010L-W | 220-240/50 | 1200 | 950 | 27 | 23 | 72 | 68 | 5100 | 4300 | 50 | 55 | 1000×460X420 | 1075X530X510 |
FMC-6015L-W | 1850 | 1500 | 76 | 72 | 7600 | 6400 | 70 | 75 | 1500×460X420 | 1575X530X510 | |||
FMC-6020L-W | 3000 | 2400 | 80 | 76 | 10200 | 8600 | 100 | 109 | 2000×460×420 | 2075X530X510 | |||
Ambient Centrifugal model
Centrifugal structure ensure high air velocity
Classic industrial design suitable for most Industrial applications
Powder-coated steel case with galvanized steel blowers
Remote control and door switch are optional
Meihao air curtain FMC-W series is vertical mounted cold air curtain. Our standard versions are with cross circulation fan, The air curtain install beside the door.The power of the air curtain is customizable from 100w to 2kw. Application areas incorporate residential area, commercial region and industrial area, for example garage door, warehouse doorway, shopping mall door, and so on.
CWL Vertical Series | |||||||||||||
Model | Voltage(V)/ | Motor Input Power | Max Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | Net Weight (KG) | Gross Weight (KG) | Unit Size (MM) | Carton Size (MM) | ||||
Hi | Low | Hi | Low | Hi | Low | Hi | Low | ||||||
FMC-5010L-W | 220-240/50 | 480 | 370 | 17 | 13 | 54 | 52 | 3300 | 2800 | 35 | 36.5 | 1000×355×345 | 1060X405X405 |
FMC-5015L-W | 800 | 580 | 54 | 52 | 4900 | 4300 | 54 | 56 | 1500×355×345 | 1560X405X405 | |||
FMC-5020L-W | 1100 | 800 | 56 | 54 | 6600 | 5600 | 65 | 68 | 2000X355X345 | 2060X405X405 | |||
FMC-6010L-W | 220-240/50 | 1200 | 950 | 27 | 23 | 72 | 68 | 5100 | 4300 | 50 | 55 | 1000×460X420 | 1075X530X510 |
FMC-6015L-W | 1850 | 1500 | 76 | 72 | 7600 | 6400 | 70 | 75 | 1500×460X420 | 1575X530X510 | |||
FMC-6020L-W | 3000 | 2400 | 80 | 76 | 10200 | 8600 | 100 | 109 | 2000×460×420 | 2075X530X510 | |||
